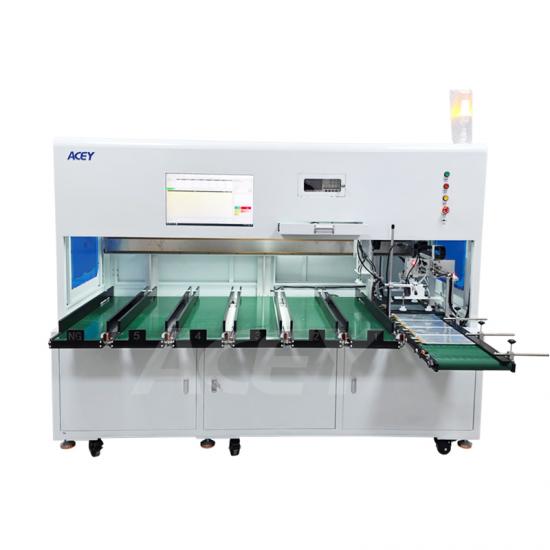

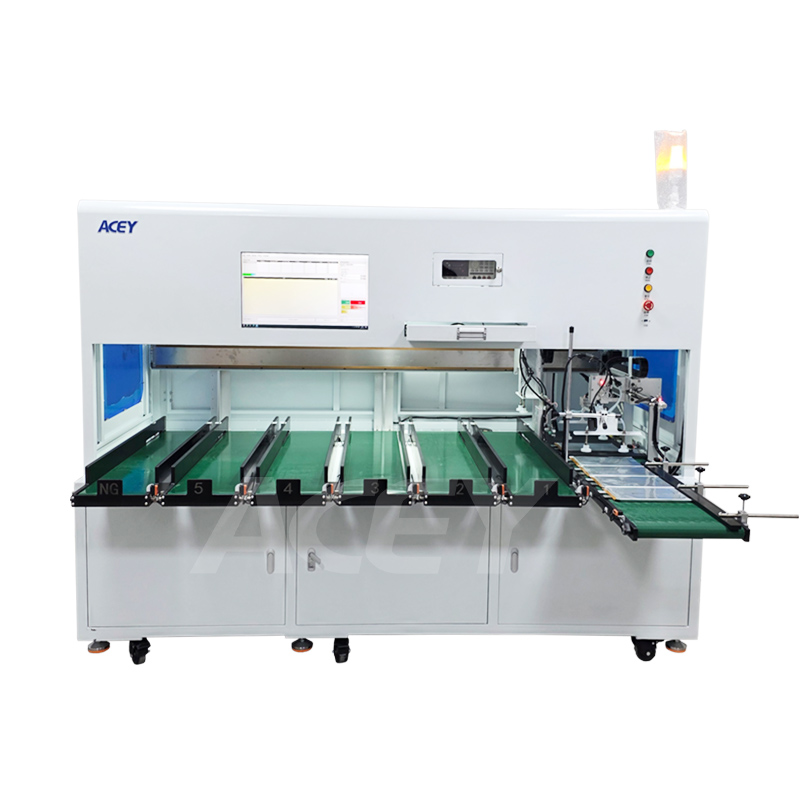

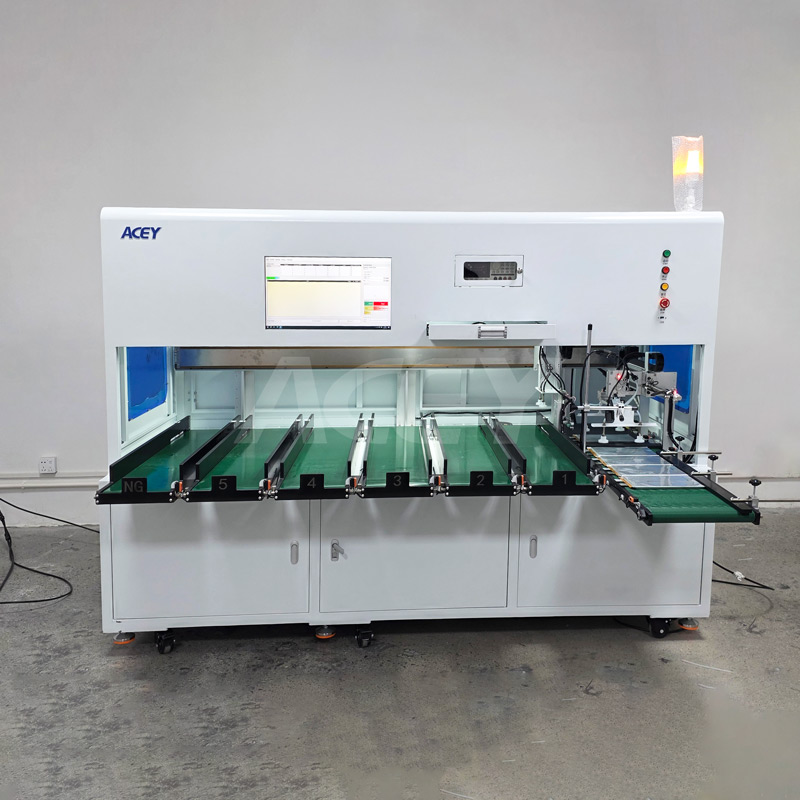

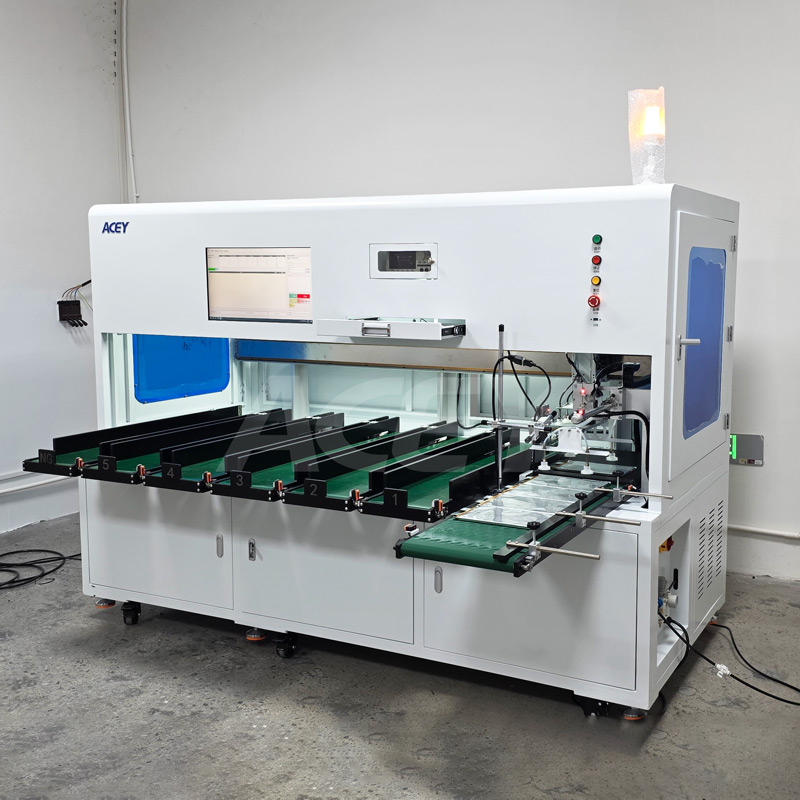

Automatic Pouch Cell Voltage & Internal Resistance Sorting Machine

Product Description

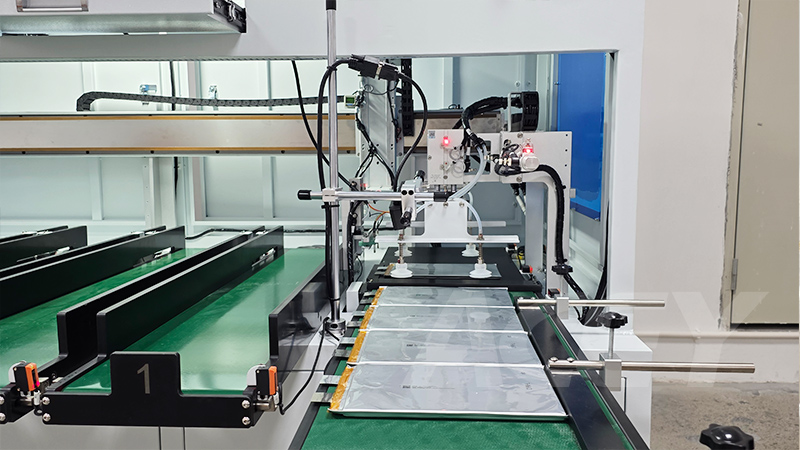

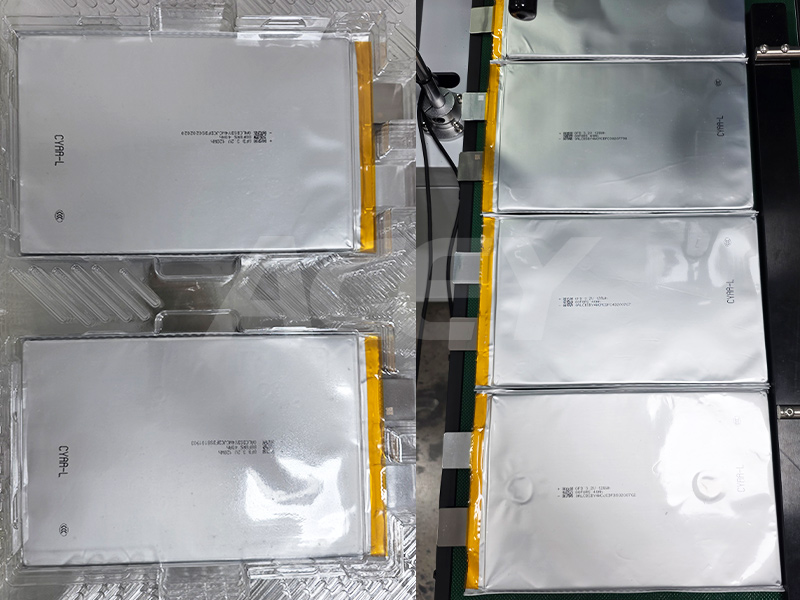

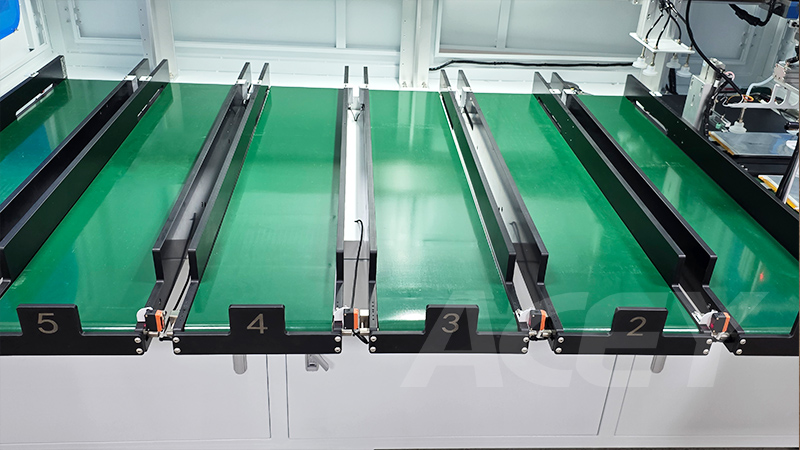

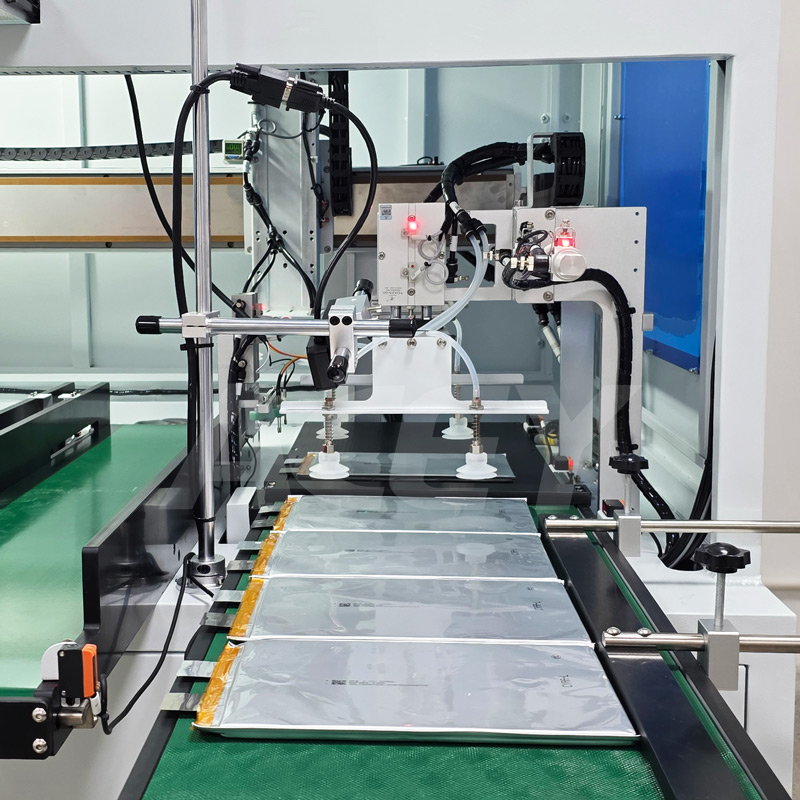

ACEY-PCSM6 Automatic pouch cell sorting machine is designed for the voltage and internal resistance testing, grading, and matching of large-format lithium pouch cells. Integrating high-precision testing modules with an automated conveying and sorting mechanism, the system automatically classifies various polymer and lithium pouch batteries according to preset voltage and IR parameters.

Suitable for EV battery, energy storage battery, and pouch cell manufacturing lines, the machine features high sorting accuracy, flexible parameter settings, and stable performance for continuous production. ACEY-PCSM6 ensures precise cell matching quality while effectively reducing labor costs and meeting the requirements of industrial mass production.

Product Features

• All-in-One Automation: Integrates manual loading, testing, barcode scanning, and automatic sorting into a single process to minimize human intervention.
• MES & SPC Integration: Equipped with a standard MES system interface to record battery QR code data and test results in real time, automatically generating SPC (Statistical Process Control) analysis reports.
• High-Efficiency Output: Delivers a sorting speed of up to 1,000 PCS/hour, increasing efficiency by more than 3 times compared to manual sorting.

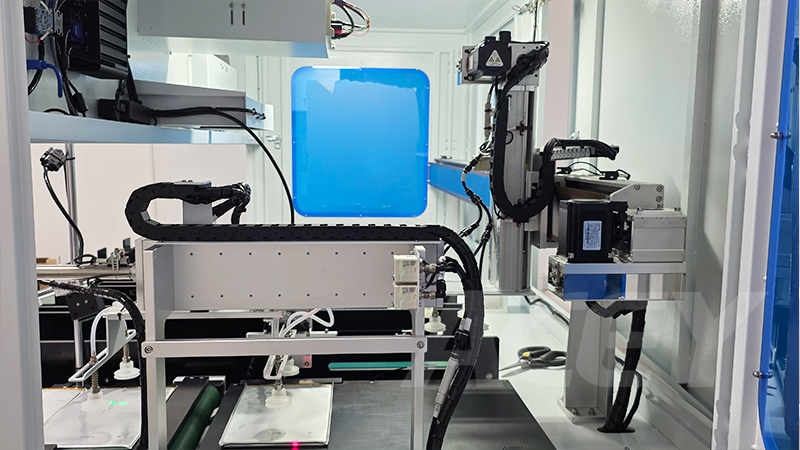

• PLC Controlled System: Utilizes PLC programmable logic control for stable continuous operation and precise mechanism coordination.

Technical Specifications

Installation & Environmental Requirements
